Heat Resistant Needle Felt Dust Collector P84 Filter Bag
P84 Filter Bag Introduction:
P84 (polymide) dust collector filter media displays excellent stability under dry high heat temperatures, has great filtration properties, and performs well even under elevated levels of moisture content. These are some of the reasons P84 is one of the more expensive filter medias used in pulse jet baghouse dust collectors. Industries that use P84 filter media range from waste to energy, power, and cement.
P84 filter bag is non-flammable and no hydroscopic. This felt offers extended bag life in low pH applications
and helps reduce differential pressure across the baghouse. P84 operates will in high temperature applications,
against acid attacks and is resistant to flex abrasion (unlike Fiberglass).
Alkaline should be avoided at high temperatures with using P84.
The P84 yarn is special in that it has a three-leaf cross section. This makes P84 an excellent filter for fine dust.
P84 Filter Bag Advantage:
Excellent stability in applications with high dry heat temperatures, mineral acids and alkaline.
P84 Filter Bag Disdvantage:
Must oversize bag for shrinkage that can occur in temperatures above 450 Degrees F.
P84 Filter Bag Specifications:
| Name | P84/M-Fiberglass
Filter Felt | P84 Filter Felt |
| Material | Fiber | P84/M-Fiberglass | P84 fiber |
| Scrim | Glass fiber | PTFE |
| Weight | g/m³ | 850±20 | 550 |
| Thickness | mm | 3.1±0.2 | 2.0±0.2 |
| Air Permeability | m³/㎡.min.200pa | 20-35 | 14-18 |
| Breaking Strength(N/5cm) | Warp | ≥2500 | ≥850 |
| Weft | ≥2800 | ≥1000 |
| Elongation@50N(%) | Warp | ≤10 | ≤25 |
| Weft | ≤10 | ≤50 |
Service
Temperature(℃) | Continuous℃ | ≤260 | ≤240 |
| Instant℃ | 280 | 260 |
| Finishing | Heat setting
PTFE Coating | Singeing,Calendaring |
P84 Filter Bag Applicant:
Waste-to-Energy, Coal Fired Boilers,Incinerators
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the
fabric from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.

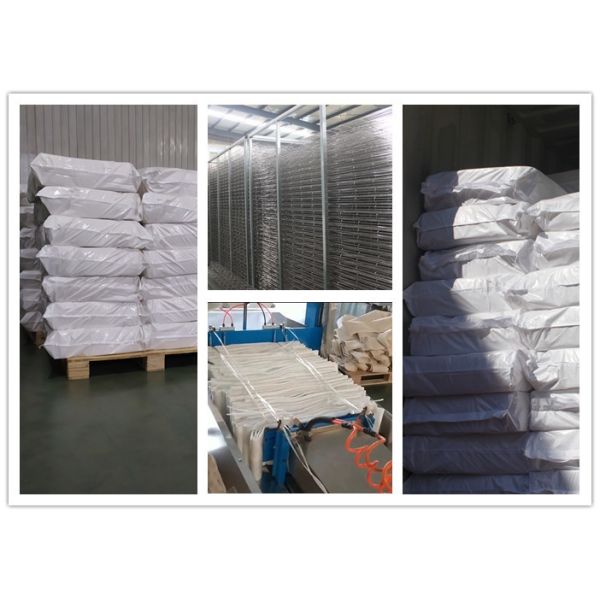

Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
